In-line Engines

---

S6B3 Series

Model	Unit	S6B3-MPTK	S6B3-T2MTK2 (L/Z)
Max. output	LD	500 PS / 2000 rpm	448 kW / 600 HP / 2001 rpm
	MD		378 kW / 507 HP / 2001 rpm
	HD
EIAPP		IMO1	IMO2
No. of cylinder		6	6
Bore × Stroke	mm	135 × 170	135 × 170
Displacement	litre	14.60	14.60
Flywheel	SAE	14 inch	14 inch
Flywheel housing	SAE	No.1	No.1
Length	mm	1964	1967
Width	mm	985	984
Height	mm	1329	1330
Dry weight	kg	1600	1665

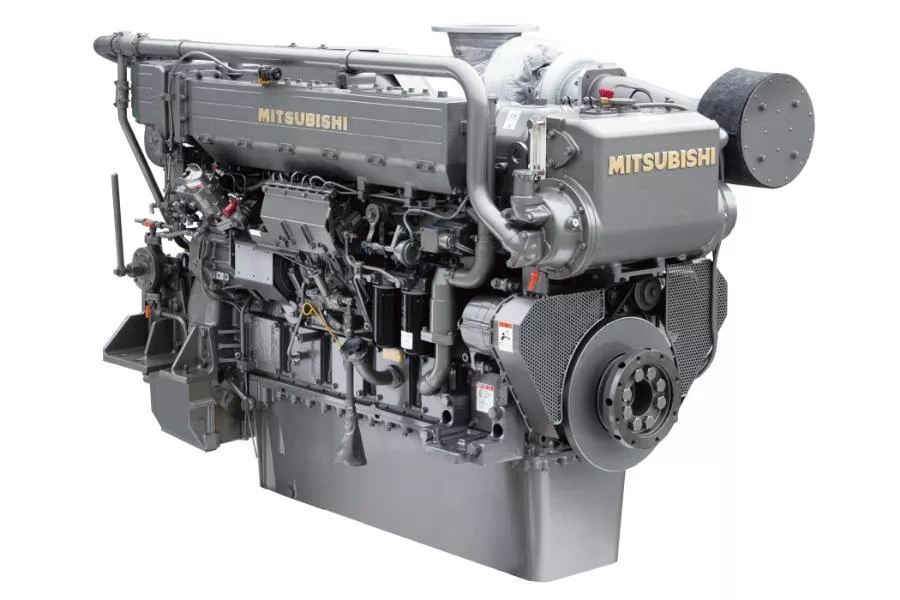

S6A3 Series

Model	Unit	S6A3-MPTK	S6A3-T2MPTK	S6A3-MPTK2	S6A3-T2MTK3(L/Z)
Max. output	LD	490kW / 657HP / 1960rpm		526kW / 705HP / 1960rpm	558kW / 748HP / 1900rpm
	MD	445kW / 597HP / 1900rpm	445kW / 597HP / 1900rpm	494kW / 662HP / 1900rpm	502kW / 673HP / 1900rpm
	HD	405kW / 543HP / 1840rpm
EIAPP		IMO1	IMO2	IMO1	IMO2
No. of cylinder		6	6	6	6
Bore × Stroke	mm	150 × 175	150 × 175	150 × 175	150 × 175
Displacement	litre	18.56	18.56	18.56	18.56
Flywheel	SAE	14 inch	14 inch	14 inch	14 inch
Flywheel housing	SAE	No.1	No.1	No.1	No.1
Length	mm	2090	2090	2189	2189
Width	mm	1019	991	1019	1127
Height	mm	1370.5	1370.5	1421	1421
Dry weight	kg	2020	2030	2100	2170

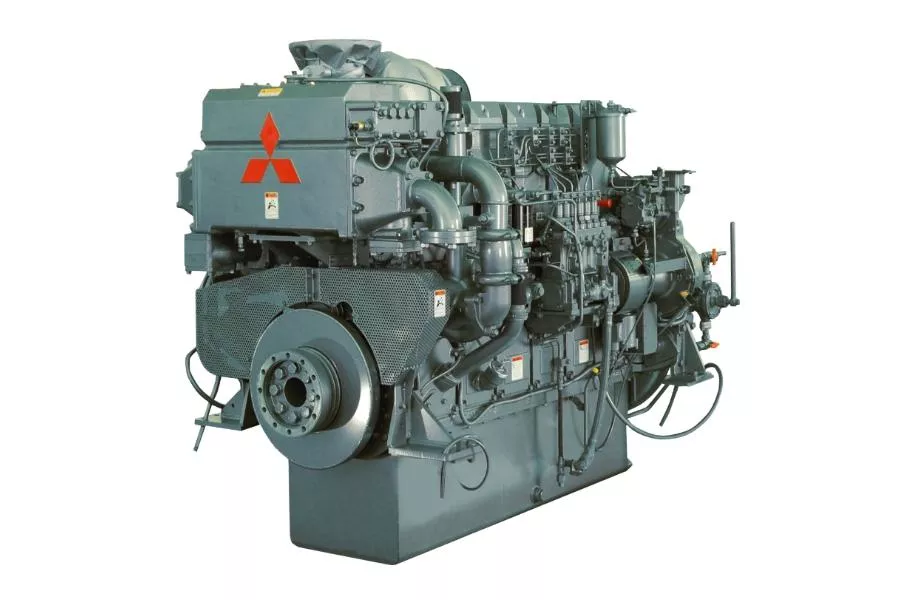

S6R Series

Model	Unit	S6R-(T2)MPTK	S6R-T2MPTK2
Max. output	LD	605 kW / 811 HP / 1800 rpm	691 kW / 927 HP / 1696 rpm
	MD	520 kW / 697 HP / 1650 rpm	610 kW / 818 HP / 1637 rpm
	HD	470 kW / 630 HP / 1600 rpm
EIAPP		IMO1 / IMO2	IMO2
No. of cylinder		6	6
Bore × Stroke	mm	170 × 180	170 × 180
Displacement	litre	24.51	24.51
Flywheel	SAE	18 inch	18 inch
Flywheel housing	SAE	No.0	No.0
Length	mm	2122	2122
Width	mm	1201.5	1201.5
Height	mm	1615	1615
Dry weight	kg	2950	2950

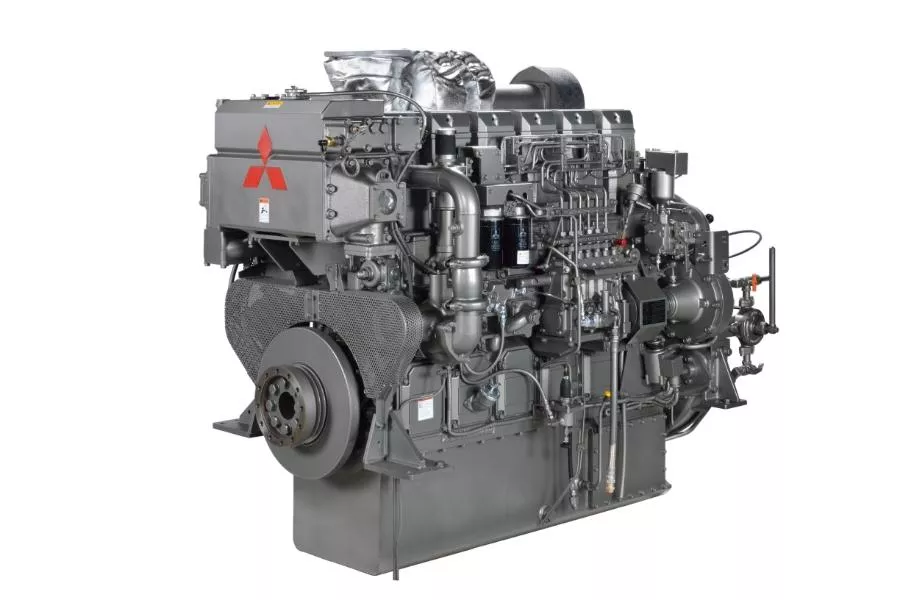

S6R2 Series
